FRP Lining Services

FRP Lining Services
FRP Lining Services
Product Code : 004
Product Description

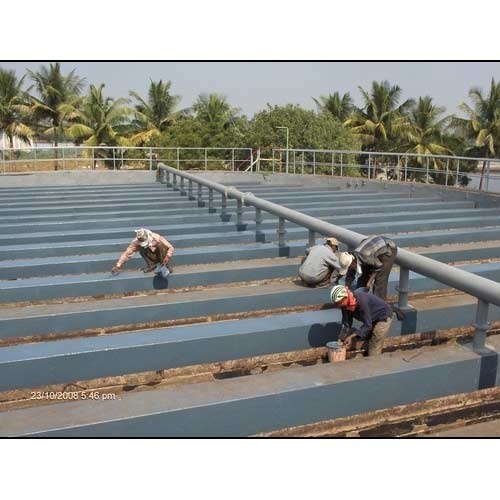

Our organization offers reliable services of FRP (Fibre-reinforced plastic ) Lining to our customers. These services are rendered by our highly skilled professionals, who have immense expertise in their respective domains. Our offered services is widely used in diverse applications such as leak proofing of roof tops, tank lining in chemical industries, anti corrosion treatment of metal tanks and many more. These services are capable to withstand harsh conditions, thus widely demanded in various industries.




  • The tank to be lined should be thoroughly emptied and clean

  • Vapor in the tank should be purged to reduce inhalation hazards


Surface Preparation:


  • Concrete

  • Holes in the floor greater than an inch diameter are repaired by welding metal plates over them and patched by putty

  • Check the moisture contents with moisture meter, to make sure an ideal moisture 4% - 10% Max

  • Metal

  • The surface must be free of scale, oil and grease

  • Sand blast to near white color


Prime the clean surface:


  • The metal and concrete surface are protected by brushing on a epoxy resin Duracoat-009-PD and Hardener Duracoat-40-H, to increase bonding strength between FRP to metal and concrete


Apply The Laminate:


  • All areas to be lined with Glass Mat and Polyester or vinyl ester resin as specified

  • The standard of glass is E glass that would be reinforcement layer

  • The resin and glass are to be worked down with special grooved

  • Roller and brushes in order to minimize the surface free of pin holes and air pockets


Apply the corrosion barrier:


  • After apply the laminate as reinforcement layer, surfacing veil as the corrosion barrier should be applied with polyester or vinyl ester as specified


Spark test:


  • Before applying the finish coat, all surface to be inspected to found any pin holes with spark test machine

  • Any pinholes detected and found, would be repaired at this time


Finish coating & hardness test:


  • Polyester and vinyl ester finishing coating would be brushed on the surface, mix the resin with wax additive and pigment color as specified

  • Make sure the hardness surface with barcol harness test machine
